Aluminium 5005 Sheets and Plates manufacturer in Singapore

Aluminium 5005 Sheets Dealer in Sengkang, Alumnium 5005 Hot Rolled (HR) Sheet and Plates Supplier in Sengkang, Al 5005 Sheets in Clementi, Aluminium Alloy 5005 Plates Size Chart, Alumnium 5005 Sheet Price in Queenstown, Aluminium 5005 Cold Rolled (CR) Sheet Supplier in Clementi, Aluminium 5005 Sheet Stockist in Queenstown, Aluminium 5005 Sheets and Plates Exporter in Singapore, Al 5005 Sheet Stockist in Pulau ujong, Alumnium Alloy 5005 Plates Supplier in Queenstown

Robert Aluminium stands out as a top manufacturer and supplier of Aluminium 5005 Sheets and Plates in Pulau Ujong, Singapore. They specialize in delivering high-quality, precision-engineered aluminium products tailored for construction, industrial, architectural, and marine uses. Aluminium 5005 is a non-heat-treatable alloy celebrated for its impressive corrosion resistance, solid mechanical properties, and exceptional surface finish. These sheets and plates are not only lightweight and durable but also crafted to exact tolerances, making them perfect for roofing, cladding, paneling, and structural needs. Robert Aluminium follows international quality standards, ensuring their Aluminium 5005 Sheets and Plates are reliable, cost-effective, and built for industries that demand durability and long-lasting structural integrity.

Aluminium 5005 Sheets and Plates are made from aluminium combined with magnesium (0.8–1.2%) along with small amounts of manganese, silicon, and iron. This blend gives them a tensile strength ranging from 160–220 MPa, a yield strength of 55–120 MPa, and a Brinell hardness of about 40–60 HB. As a non-heat-treatable and highly durable option, these sheets and plates excel in resisting corrosion, wear, and deformation. Lightweight yet strong, Aluminium 5005 Sheets and Plates maintain their shape, making them ideal for construction, industrial, architectural, and marine applications that require dependable mechanical performance and longevity.

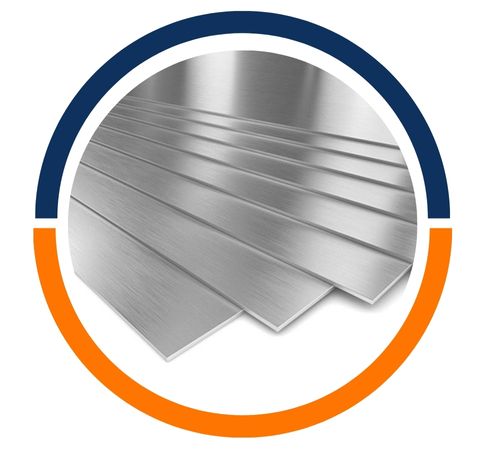

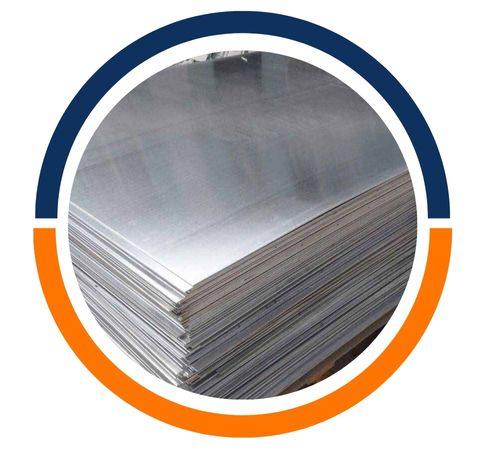

Aluminium 5005 Alloy Sheets

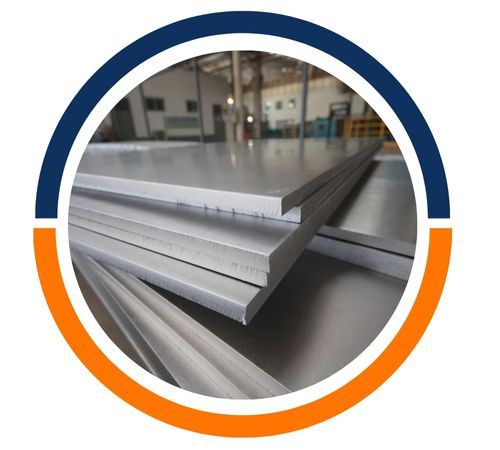

Aluminium 5005 Hot Rolled Sheets

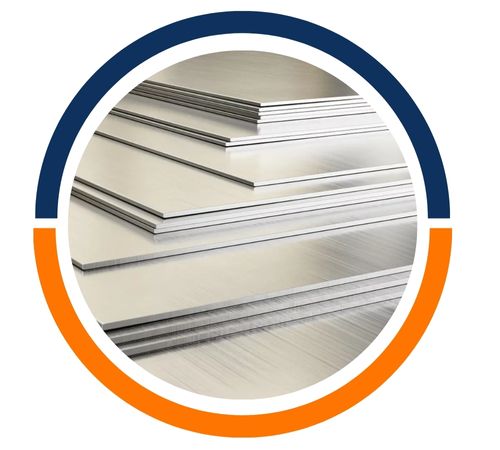

Aluminum 5005 Cold Rolled Sheets

Aluminium 5005 Clad Sheets Distributor in Singapore, Al 5005 Perforated Plates Supplier in Pulau ujong, Aluminium Alloy 5005 Sheet Weight Chart, Al 5005 Plates Exporter in Queenstown, Alumnium 5005 Polished Sheets Manufacturer in Sengkang, Aluminium 5005 Shim Sheet and Plate Price List in Clementi, Aluminium 5005 Chequered Plates Sizes in mm, Alumnium Alloy 5005 Hot Rolled Plate Distributor in Clementi, Al 5005 Sheets and Plates Queenstown

Specifications of Aluminium 5005 Sheets and Plates

Standards : ASTM B209 / ASME SB209

Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38

Thickness : 0.2-250

Width : 100-2600

Length : 500-10000

Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.

Finish :Mill, Customer specific finish

Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Chemical Compositions of Aluminium 5005 Sheets and Plates

Element	%	Element	%
Aluminium	Balance	Manganese	0.20 max
Magnesium	0.50 – 1.10	Chromium	0.10 max
Silicon	0.30max	Zinc	0.25 max
Iron	0.07 max	Others, each	0.05 max
Copper	0.20 max	Others, total	0.15 max

Mechanical Properties of Aluminium 5005 Sheets and Plates

Temper	0.2% Proof Stress, MPa min†	Tensile Strength, MPa	Elongation % min‡
O (annealed)	35	105 – 145	12 – 22
H12	95	125 – 165	2 – 8
H14	115	145 – 185	1 – 6
H16	135	165 – 205	1 – 3
H18	–	> 185	1 – 3
H32	85	115 – 160	3 – 9
H34	105	135 – 180	2 – 7
H36	125	160 – 200	1 – 4
H38	–	> 180	1 – 4

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium 5005 Sheets and Plates

Largest Aluminium 5005 Sheets and Plates Manufacturer and Exporter in Pulau ujong, Singapore

Robert Aluminium based in Pulau ujong, Singapore is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Equivalent Grades of Aluminium 5005 Sheets and Plates

Standard	UNS	ISO	BS	DIN
5005	A95005	AlMg1	N41	3.3315

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium 5005 Sheets and Plates

Sizes (mm)	Theoretical Mass KG/Plate
2000 X 1000 X 0.5	2500 X 1250 X 0.5
2000 X 1000 X 0.7	2500 X 1250 X 0.7
2000 X 1000 X 0.9	2500 X 1250 X 0.9
2000 X 1000 X 1.2	2500 X 1250 X 1.2
3000 X 1500 X 1.2	2000 X 1000 X 1.6
2500 X 1250 X 1.6	3000 X 1500 X 1.6
2000 X 1000 X 2.0	2500 X 1250 X 2.0
3000 X 1500 X 2.0	2500 X 1250 X 2.5
2.79	4.36
3.91	6.10
5.02	7.85
6.74	10.46
15.01	8.93
13.95	20.09
11.16	17.44
25.11	21.80

Are Custom Sizes Available For Aluminium 5005 Sheets and Plates?

Yes, we offer custom sizes for Aluminium 5005 Sheets and Plates to meet specific project needs. Our team at Robert Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@robertaluminium.com

Uses of Aluminium 5005 Sheets and Plates

Aluminium 5005 sheets and plates are widely used in applications requiring corrosion resistance, lightweight properties, and an excellent surface finish. In architecture, they are popular for curtain walls, roofing, cladding, and decorative panels. Their resistance to marine environments makes them ideal for boat hulls, decks, and other marine components. Additionally, Aluminium 5005 is used in signage, storage tanks, and food processing equipment due to its durability and weldability. Its versatility ensures reliable performance across industries, including construction, transportation, and manufacturing.
