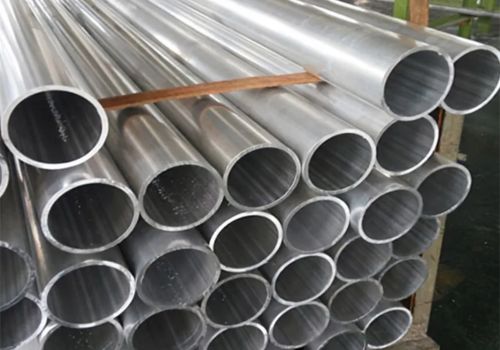

Robert Aluminium stands out as a reliable manufacturer and supplier of Aluminium Welded Pipes in Pulau Ujong, Singapore. We pride ourselves on delivering high-quality products tailored for a variety of industrial uses. Our Aluminium Welded Pipes are crafted by welding aluminium plates or sheets, ensuring they boast impressive strength, durability, and resistance to corrosion. These pipes are lightweight, highly conductive, and more cost-effective than seamless options. At Robert Aluminium, we offer a range of Aluminium Welded Pipes in different grades, sizes, and specifications that meet international quality standards, serving industries like construction, marine, chemical, automotive, food processing, and power generation with consistent performance.
Aluminium Welded Pipes are primarily composed of aluminium, often alloyed with elements such as magnesium, silicon, manganese, or copper, depending on the specific grade. They showcase tensile strength between 90–550 MPa and yield strength from 35–480 MPa, along with excellent ductility and machinability. The welded design allows for customization in larger diameters and longer lengths while ensuring high structural integrity. These pipes are particularly known for their remarkable corrosion resistance, especially in marine and chemical settings, as well as their superior thermal and electrical conductivity. Their lightweight nature, strength, and weldability make them ideal for various industrial and structural applications.
Standards : ASTM B345, B241, B429 / ASME SB345, SB241, SB429
Standard : AMS QQ-A-200/8, AMS QQ-A-200/9, AMS 4160/4161/4172
Size : 8 (1-1/2″ / 1.900″)
Outer Diameter : 1″ through 16″
Length : Double Random, Single Random, Cut Length
Thickness : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End : Plain End, Beveled End, Threaded
ASTM B241 / ASME SB241 – Standard Specification for Aluminum and Aluminum-Alloy Welded Pipe and Welded Extruded Pipes
ASTM B345 / ASME S345 – Standard Specification for Aluminum and Aluminum-Alloy Welded Pipe and Welded Extruded Pipe for Gas and Oil Transmission and Distribution Piping Systems
ASTM B429 / ASME SB429 – Standard Specification for Aluminum-Alloy Extruded Structural Pipe and Tube
EN AW-AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Round Pipe
ISO AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Piping
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
| 7075 T6, T651 | 11 | 83-572 | 73- 503 | 150 | ||||||||
| 7075 T73, T7351 | 13 | 73-503 | 63-434 | NA | ||||||||
Robert Aluminium based in Pulau ujong, Singapore is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| Grade | UNS | USA | Japan | France | ISO | WNR | EN | DIN | ISO | BS (OLD) |
| 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. | – | – | – | – | – |
| 6082 | A96082 | AA6082 | – | – | – | 3.2315 | AW-6082 | AlMgSi1 | AlSi1MgMn | HE30 |
| 5083 | A95083 | 5083 | – | – | AlMg4,5Mn0,7 | 3.3547 | AW-AlMg4,5Mn0,7 | AlMg4,5Mn | – | – |
| 6061 | A96061 | AA6061 | – | – | – | 3.3211 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 |
| 7075 | A97075 | 7075 | 3.4365 | ENAW-AlZn5.5MgCu EN AW-7075 | AlZnMgCu1.5 | AlZn6MgCu | 7075 L95 L96, V95 |
| NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
| 1/8″ | ✓ | ✓ | ✓ | ✓ | |
| 1/4″ | ✓ | ✓ | ✓ | ✓ | |
| 3/8″ | ✓ | ✓ | ✓ | ✓ | |
| 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3/4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1 1/4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 2 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 5″ | ✓ | ✓ | ✓ | ✓ | |
| 6″ | ✓ | ✓ | ✓ | ✓ |
| Physical Property | Value |
| Density | 2,70 g/cm³ |
| Melting Point | 582 °C |
| Thermal Expansion | 23.4 x 10^-6 /K |
| Modulus of Elasticity | 69 GPa |
| Thermal Conductivity | 170 W/m.K |
| Electrical Resistivity | %43 IACS |
Yes, we offer custom sizes for Aluminium Welded Pipes to meet specific project needs. Our team at Robert Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@robertaluminium.com
Aluminum welded pipes are widely used in various industries due to their light weight, corrosion resistance and durability. In construction, it is used for structural supports, handrails and framing. The automotive industry uses them to make gasoline-hydraulic cables because of their strength-to-weight ratio. They are also commonly found in HVAC systems in air conditioners and refrigerators, where corrosion resistance is essential. In addition, aluminum welded pipes are used in medicine, marine environment, and aerospace to transport water and construction materials, making them practical and efficient in harsh environments.
