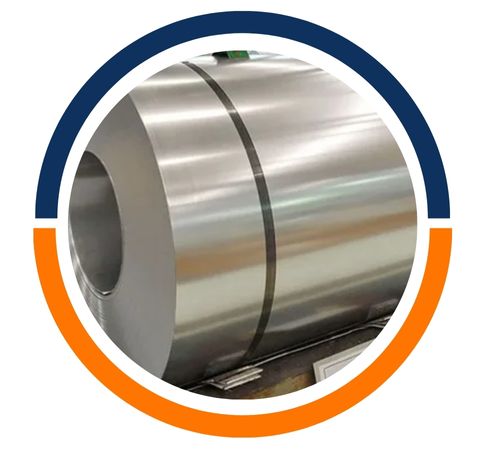

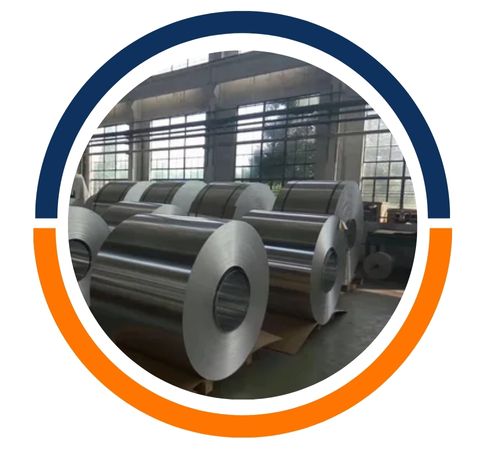

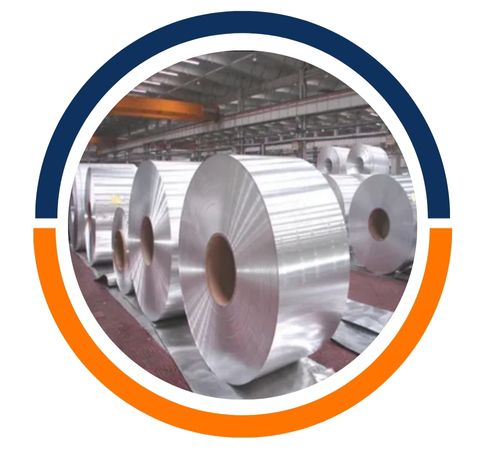

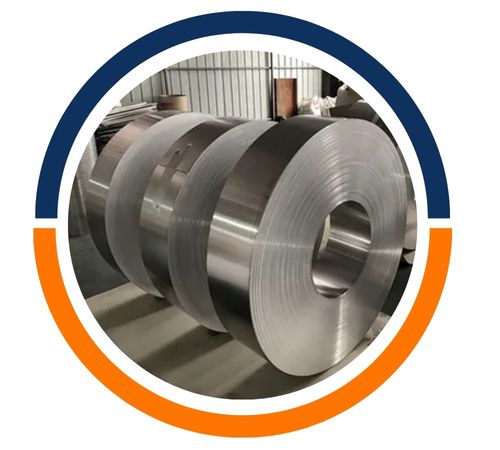

Robert Aluminium, a reputable manufacturer and supplier based in Pulau Ujong, Singapore, offers top-notch Aluminium 5005 coils made in the USA. These coils are celebrated for their impressive formability, resistance to corrosion, and eye-catching finish, making them a popular choice across various industries. Robert Aluminium is dedicated to providing customers with high-quality products that adhere to international standards and specifications. With a strong focus on quality, durability, and performance, they deliver Aluminium 5005 coils in a range of dimensions and finishes to meet the diverse needs of different industries, making them a go-to option in construction, automotive, marine, and architectural applications worldwide.
The Aluminium 5005 coils produced in the USA primarily consist of aluminium, with a small addition of magnesium—typically around 0.8%. This blend boosts corrosion resistance and ensures excellent weldability. The alloy strikes a great balance between strength and workability, making it easy to bend, roll, and shape. Its mechanical properties include moderate tensile strength, outstanding fatigue resistance, and high thermal conductivity. Plus, it boasts exceptional anodizing qualities, especially for architectural finishes, which makes it perfect for both structural and decorative uses that demand durability and visual appeal.
Standards : ASTM B209 / ASME SB209
Temper : O,H14,H16,H18,H19,H22,H24
Thickness : 0.1-4
Width : coil
Length : 100-1600
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Coil Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

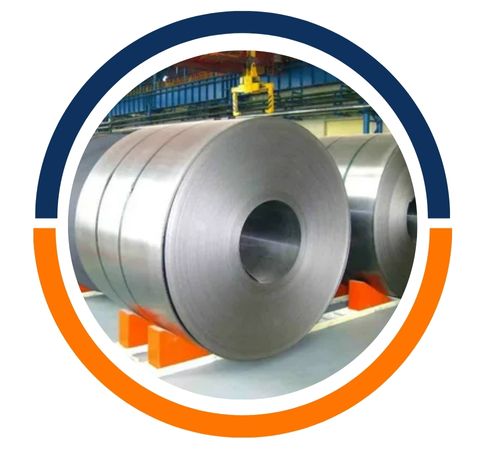

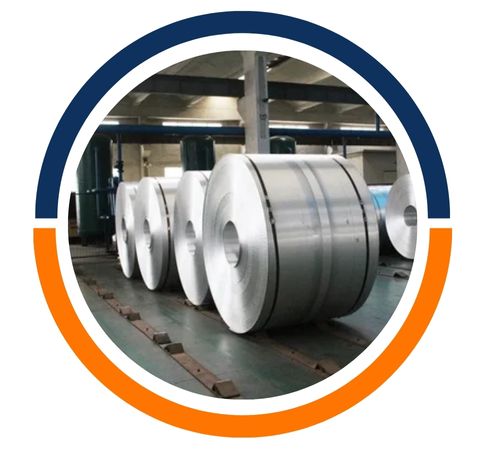

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Coil
| European Standard | GERMANY | UNS | DIN,WNr |
| B57S | AI-Mg-1 | A95005 | – |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Zn | Others Each | Others Total |
| 5005 | Bal | 0.30 max | 0.70 max | 0.20 max | 0.20 max | 0.10 max | 0.50 / 1.10 | 0.25 max | 0.05 max | 0.15 max |
| Material | Temper | Tensile Strength (N/mm²) | Yield Strength (N/mm²) | Elongation on 50mm (%) | |||
| 0.5 mm | 0.8 mm | 1.3 mm | 2.6mm | ||||
| 5005 | 0 | 95-145 | – | 18 | 20 | 21 | 22 |
| 5005 | H12 | 125-170 | 80 | 4 | 5 | 6 | 8 |
| 5005 | H14 | 145-185 | 100 | 3 | 3 | 5 | 6 |
| 5005 | H18 | 185 min | 165 | 1 | 2 | 3 | 3 |
Robert Aluminium based in Pulau ujong, Singapore is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5005 Coils to meet specific project needs. Our team at Robert Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@robertaluminium.com
Aluminium 5005 coils from the USA are extensively utilized across a variety of sectors due to their adaptable features. In construction, they’re used for roofing, cladding, and curtain wall panels thanks to their superb anodizing and weather resistance. The automotive industry relies on them for lightweight yet robust components that enhance fuel efficiency and longevity. In marine settings, their ability to resist seawater corrosion makes them ideal for boat building and ship parts. They’re also widely used in signage, appliances, and architectural projects, providing both strength and a premium surface finish that’s perfect for decorative applications.
